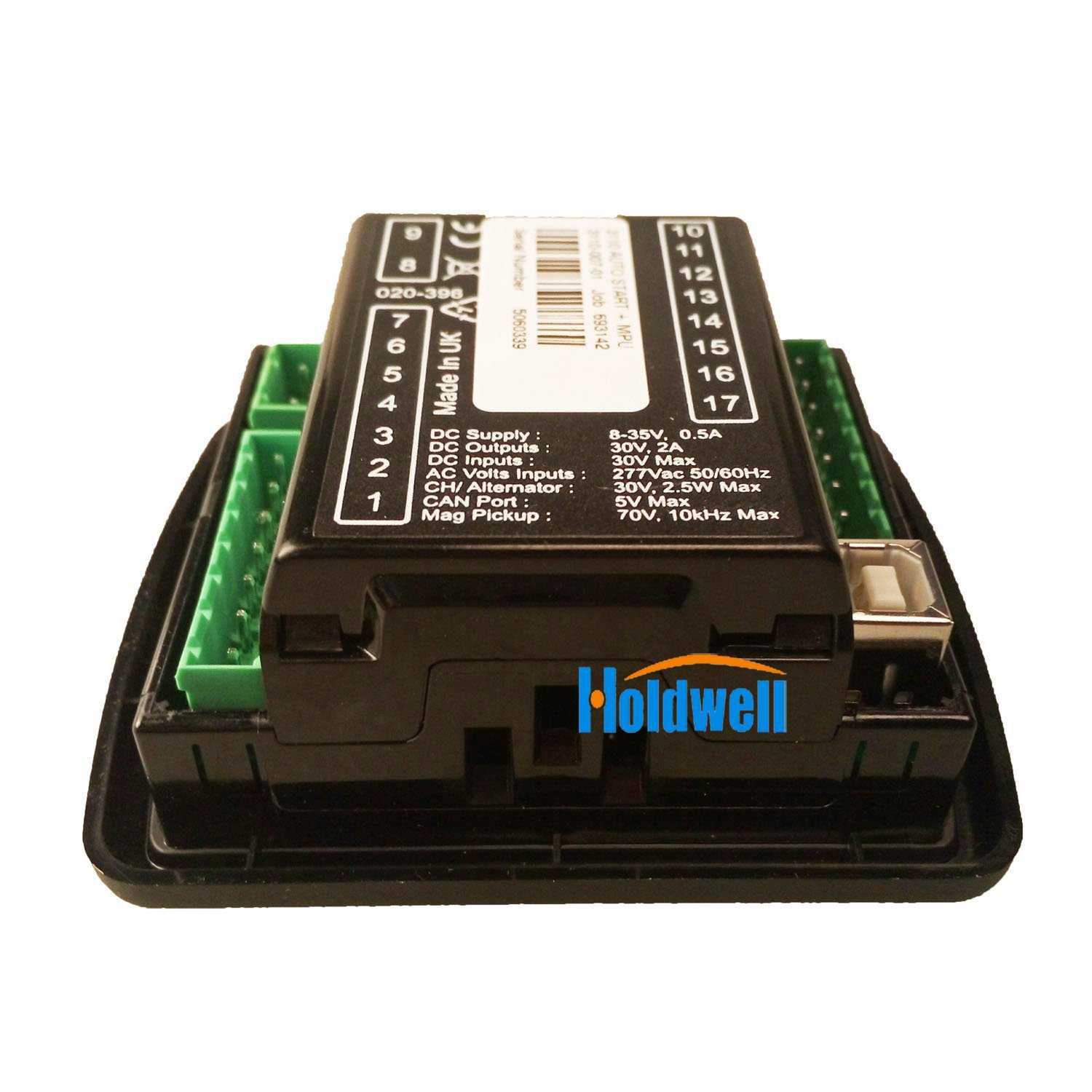

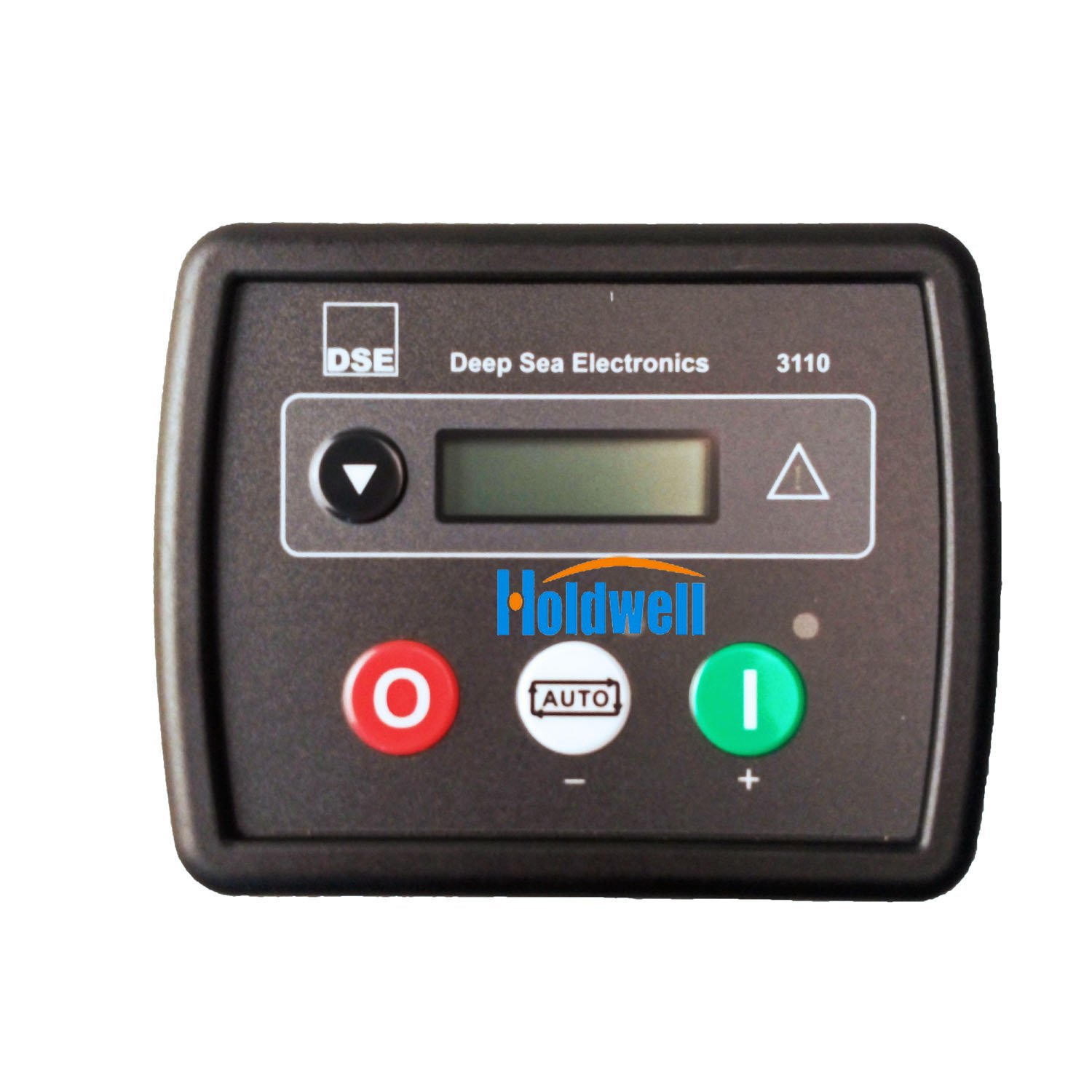

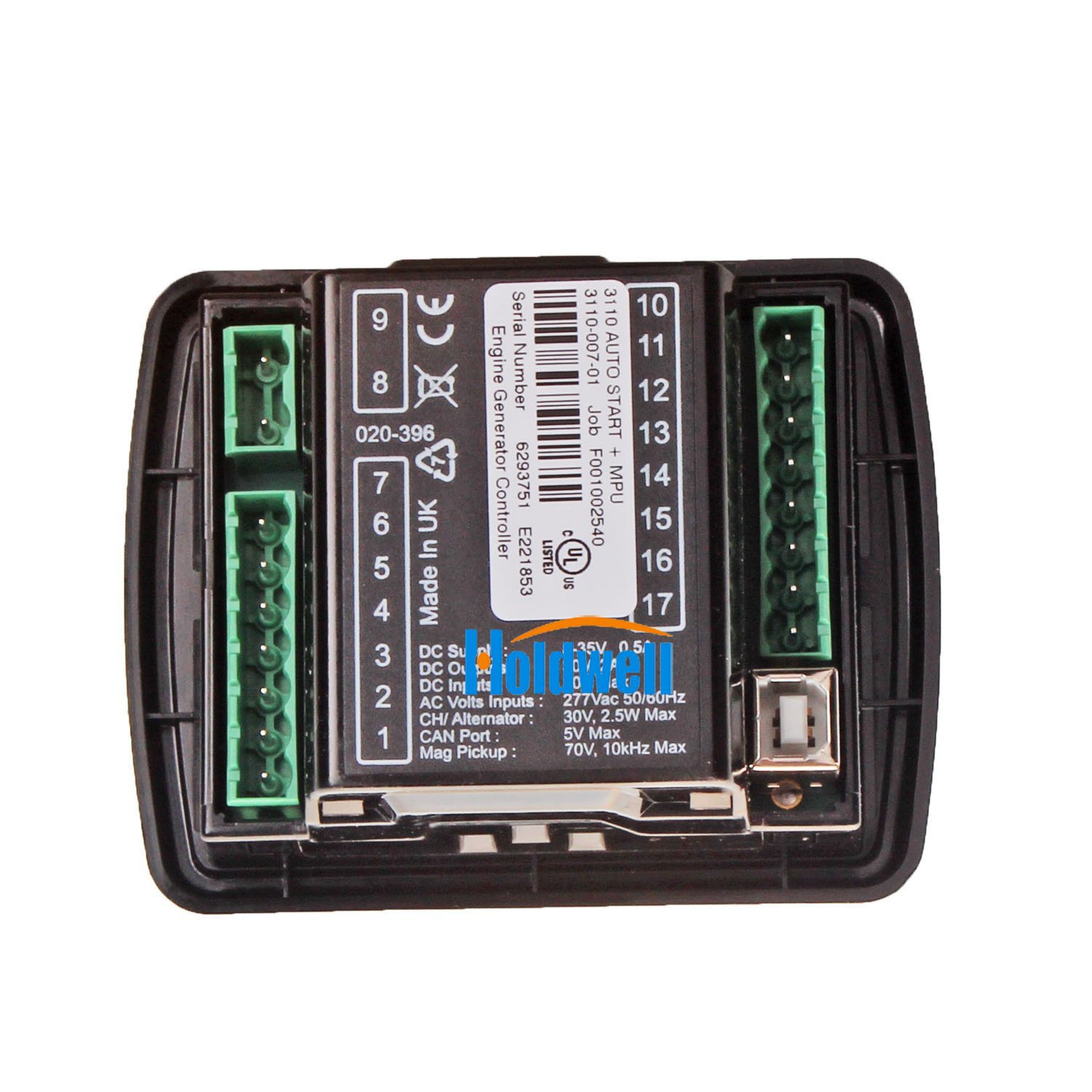

Holdwell DEEP SEA DSE3110 MPU Electronics Controller Module Generator Gensets Spare Parts - Size

Introduction:

The module monitors engine speed, frequency, voltage and engine run hours and also displays the warning and shutdown status. The module includes fixed and flexible outputs as well as configurable inputs making this product ideal for a wide variety of applications. The module can either be programmed using the front panel or by using the DSE Configuration Suite PC software.

The module is available in MPU/ALT variants. - For use with non-electronic engines only (magnetic pick-up/alternator sensing).

• Optional frequency (Hz) sensing from main AC alternator for genset applications.

• Optional Magnetic Pickup speed sensing.



Specification:

DC Supply.

ContinuousVoltage Rating8 to 35 V Continuous.

Cranking DropoutsAble to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achineved without the need for internal batteries.

Charge Fail/ Excitation8 to 35 V fixed power source 2.5W

Nominal Standby Current23 mA at 12 V, 18 mA at 24 V

MAXIMUM OPERATING CURRENT35 mA at 12 V, 30 mA at 24 V



Outputs

OUTPUT A (FUEL) 2 A DC at supply voltage

OUTPUT B (START) 2 A DC at supply voltage

AUXILIARY OUTPUTS C & D2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE15 V - 333 V AC (L-N)

FREQUENCY RANGE3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE± 0.5v to 70v

FREQUENCY RANGE10, 000 Hz (max)

DIMENSIONS

OVERALL9.8 cm x 7.9 cm x 4.0 cm

PANEL CUT-OUT8 cm x 6.8 cm

MAXIMUM PANEL THICKNESS8 cm



Feature

• Back-lit icon LCD display

• Front panel editing

• LED and LCD alarm indication

• Power Save mode

• CAN and Magnetic Pick-up/Alt. Versions available (specify on ordering)

• PC configurable

• 6 Digital inputs

• 4 Outputs (2 configurable on Magnetic Pick up/Alt., 4 configurable on CAN version)



Alternative configuration

• Configurable timers and alarms

• Remote Start input

• Generator voltage display

• Generator frequency display

• Battery voltage display

• Engine speed display

• Hours counter

• Engine pre-heat

• Comprehensive shutdown or warning on fault condition



BENEFITS

• Tamper-proof hours counter

• Provides accurate information for monitoring and maintenance periods

• Multiple engine parameters are monitored simultaneously

• Module can be configured to suit individual applications

• Suitable for engine only applications

• Compatible with a wide range of CAN engines

• Uses DSE Configuration Suite PC software for simplified configuration

• IP65 rating (with optional gasket) offers increased resistance to water ingress

• Licence-free PC software
